Compact Downdraft Table S-DD-1 for Efficient Air Filtration

Description

S-DD-1 Compact Specs

• Mobility Caster Base
• CFM 350
• Filter Type: Baffle Filter, Pleated Filter, Rigid Cell Filter
• Weight 46 lbs.
• Frame 18-gauge steel, polyurethane powder coat finish
• Dimensions 12.5” W x 33.25” H x 12.5” D
• Blower/Motor 350W, 2.8 amps, 120/1/60, 2000 RPM
• Typical Motor Life 100,000 hours (depending on operating conditions)
• Noise Level 65 dB
• Fan Performance 350 CFM at .5” E.S.P.
• 240 CFM at 2.0” E.S.P.; 100 CFM at 2.75”E.S.P.
• Filter Efficiency: Pleated Filter:MERV 10 (65%), Rigid Cell Filter: MERV 14 (95%)

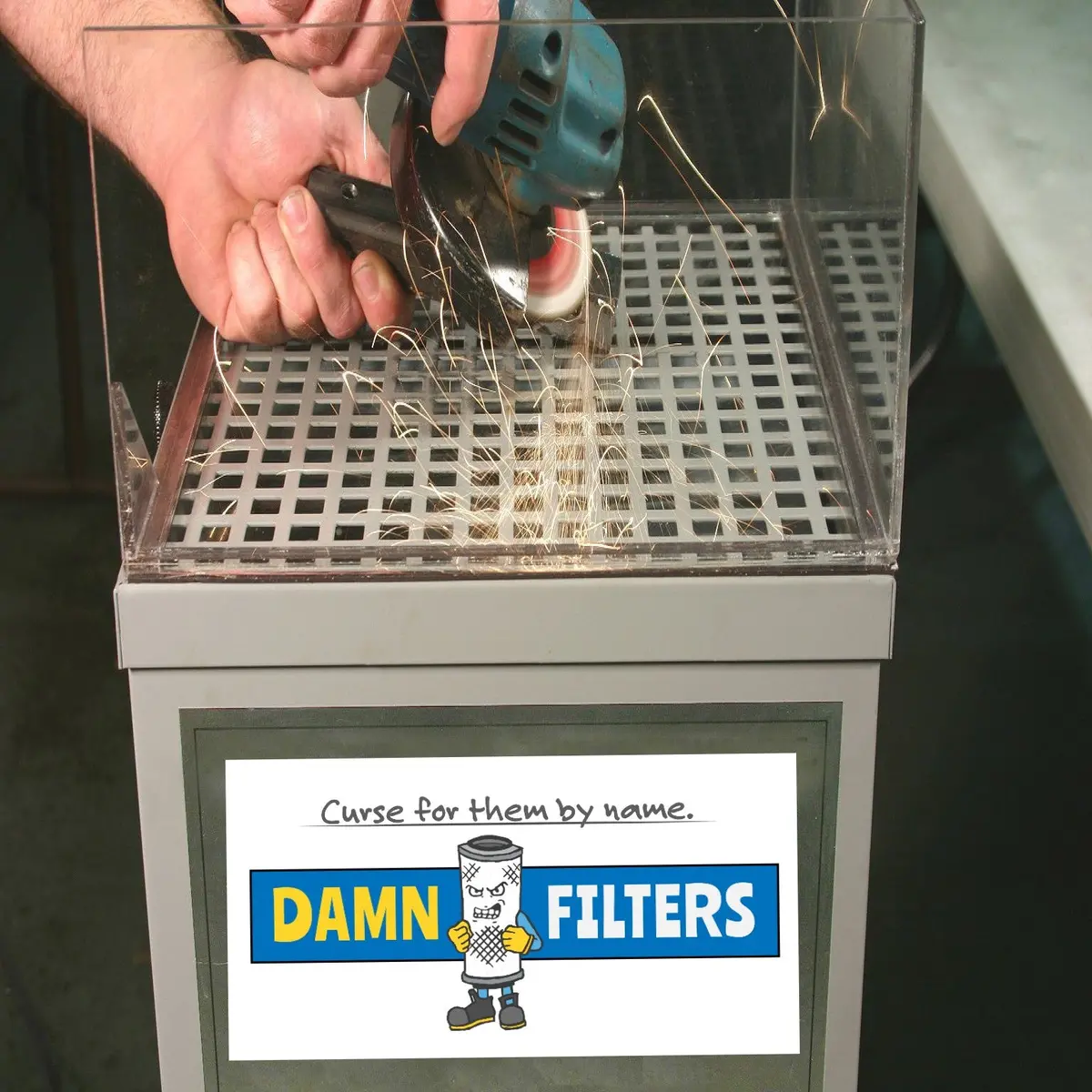

Included With Product: 12” x 12″ Grated Downdraft Surface, Acrylic Side and Back Shield, Multi-Stage Filtration, Spark-Trap Baffle Filter, Pleated Filter, Rigid Cell Filter, Variable Speed Control, Directional Exhaust Outlet Deflector, 7’ Power Cord with plug, Cord Wrap Bracket, Handle, Heavy-Duty Caster Base

Ideal for collection of pollutants from of industrial and laboratory applications including: grinding, sanding, welding, soldering, chemical mixing, and more.

All equipment purchases require 50% down payment.

DAMN Filters offers a full line of dust collection equipment.

If you don’t see the Downdraft table you are looking for or need help give us a call at (844) 605-3266 or contact us.
