Description

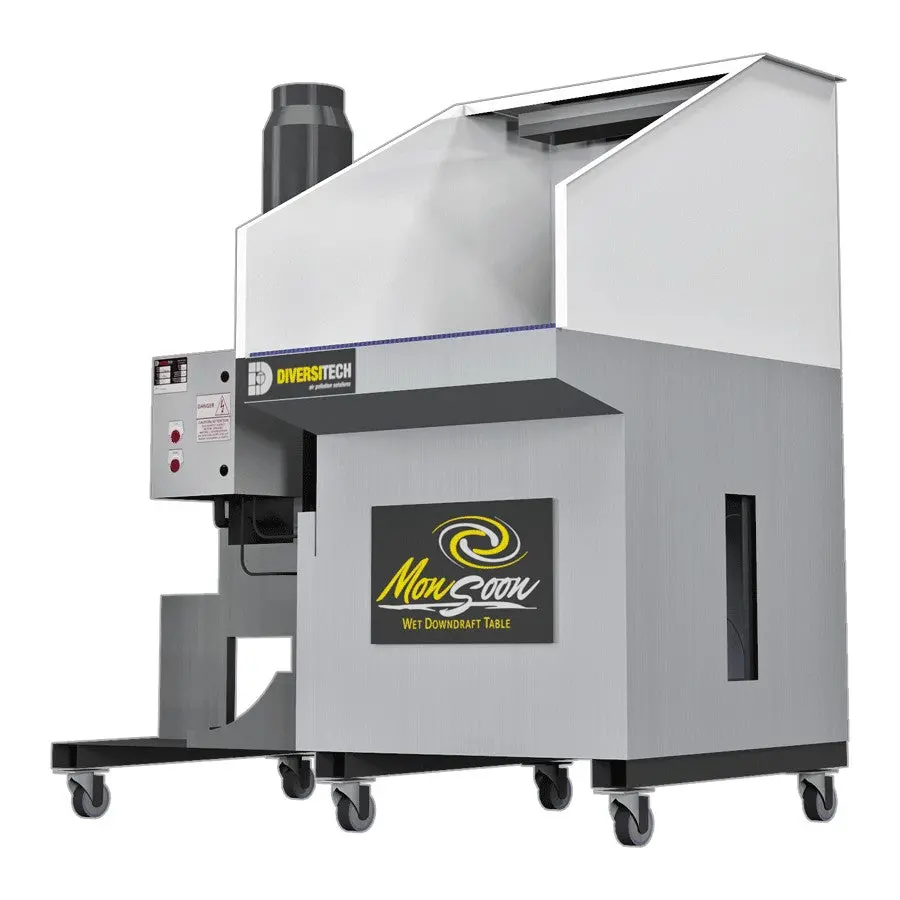

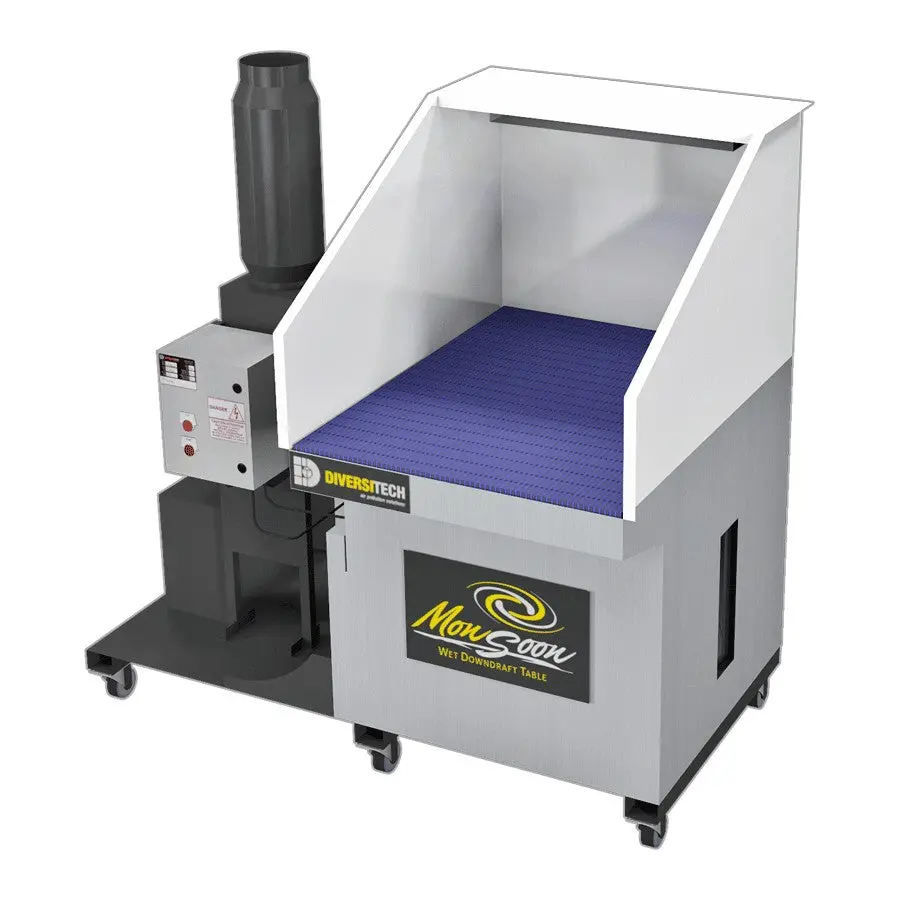

MONSOON MINI GDS WET DOWNDRAFT TABLE DETAILS
- Side & Back Walls with top-plate
- 24″ dust/vapor proof Light Kit
- Flexible 38” x 36” Worksurface
- Auto Water-level System
- Stainless Steel Construction
- 3.0HP TEFC Motor producing 1200 CFM of airflow
- Heavy-duty Steel Bar Grating with Protective Mat
- Mist Eliminator After-filter, 99% @ 3 microns
- NEMA 12 Control Panel with Overload Protection
- Water Fill System: Auto
- Nominal Air Flow (CFM): 1200
- Avg. Face Velocity (FPM): 300
- Motor H.P.: 3.0
- Phase (hz): three-phase
- F.L.A. @ 230V/460V/575V: 9.6 / 4.8 / 3.9
- Worksurface (in.): 38″W x 36″L
- Footprint (in.): 60″W x 39″H x 42″L
- Weight (lbs.): TBD
- Sound Level (dB): 72 @ 5′
The MONSOON series all include industrial swivel casters, This table is approved for capturing combustible dust, including mixtures of steel, aluminum, titanium, and magnesium.
Optional Upgrades:
- Auto Wash-down System
- WV-55 Sludge-Vac
- Side and Back Walls
- HEPA Afterfilter Kit (99.99% @ 0.3 micron)
- Dust-Tight / Vapor-Tight Light Kit
- Auto-fill Water Control System (MDD-MINI)
- Custom configurations available on request
All equipment purchases require 50% down payment.
DAMN Filters offers a full line of dust collectors.
If you don’t see the collector you are looking for or need help give us a call at (844) 605-3266 or contact us.
