Heavy-Duty Telescopic Fume Extraction Arm

Description

Telescopic Style Fume Extraction Arm

• All adjustments on the outside
• Aluminum hood with air diverter
• Grab handle all around the hood
• Aluminum hood joints
• Cast aluminum swivel joints
• Aluminum and steel mounting swivel
• Smooth tube
• Standard built in air damper
• Black PVC flexible hoses
• Standard powder coating
• Hood Diameter – 12.5″(20″ Hood Upgrade Available for 6″ and 8″ arms)
• Available with optional LED Light Kit
  (LED Light Kit for DAMN Fume Extraction Arm)


Applications:

• Schools
• Repair and maintenance
• Production lines
• Welding booths
• Local air pollution capture
• Excluding chemically aggressive fumes and gases
• Temperature resistance up to 175°F
• Recommended airflow range
• 550 – 800 CFM
• Arms available in 3 sizes
• Telescopic Fume Arm, 6″ Diameter, reach 4′ – 5′
• Telescopic Fume Arm, 6″ Diameter, reach 5′ – 6′
• Telescopic Fume Arm, 6″ Diameter, reach 6′ – 8′

Fume Extraction Arm Information:

Recommended Mounting Height

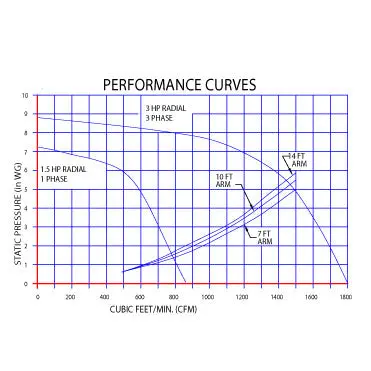

Static Pressure Drop

Using the Wall Mounting Bracket and theStarter Collar will help make attaching your Fume Extraction Arm quick and simple

Installing the starter collar between the extraction arm base and the mounting bracket provides a collar that sticks out the top of the mounting bracket.

DAMN Filters offers a full line of fume extraction arms .

If you don’t see the Fume Extraction Arm you are looking for or need help give us a call at (844) 605-3266 or contact us.
