High-Efficiency 12×24×4 Mini Pleat Air Filter with MERV 13 Rating — Rigid Plastic Frame Design, Sold in Sets of Three

Description

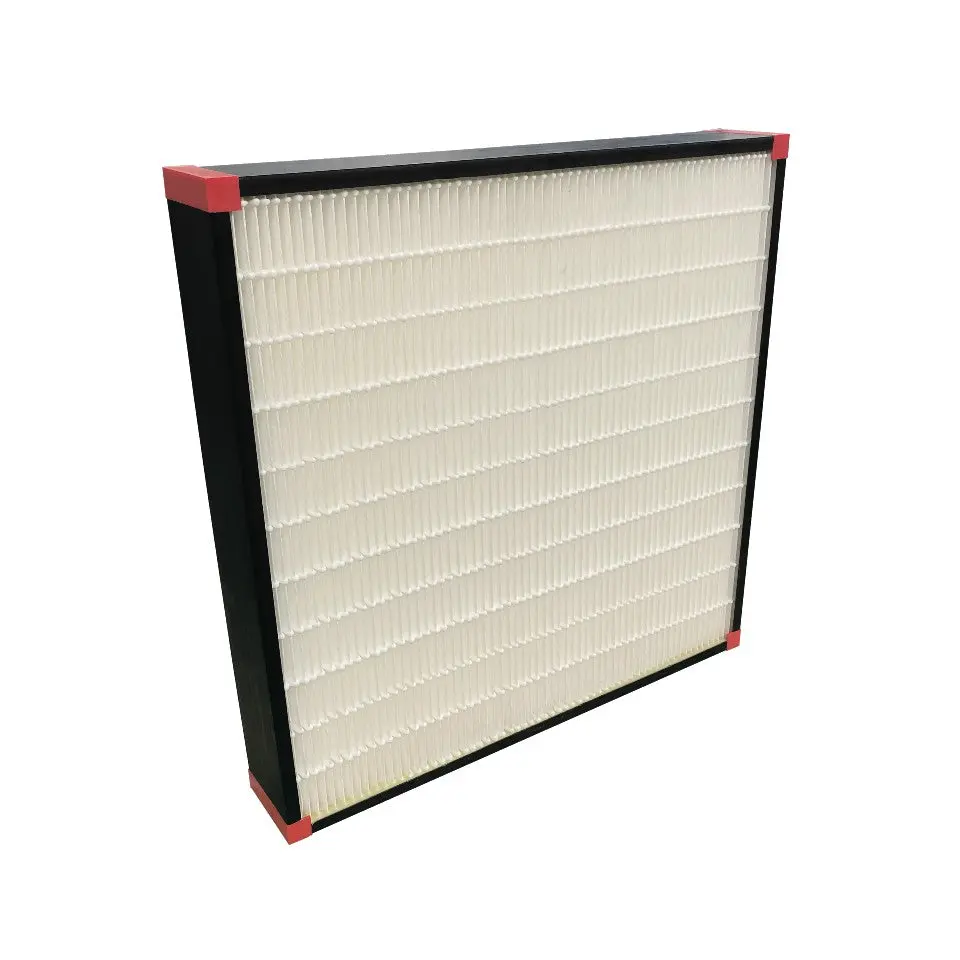

12x24x4 Mini Pleat Filter – MERV 13

This 12x24x4 mini pleat filter is a high-efficiency extended surface panel filter designed for HVAC and commercial air filtration applications requiring strong particulate removal, low resistance, and long service life. The compact mini-pleat design provides high media area in a space-saving profile, making it a strong replacement for traditional box-style and bag filters in the proper application.

Standard DAMN Filters replacement for 12x24x4 MERV 13 mini pleat filters. Compatible with multiple manufacturer part numbers and supplied based on availability.

Specifications

• Part Number: DF12244M13B (box frame), DF12244M13H (single header)
• Nominal Size: 12x24x4
• Actual Size: 23.3″ x 11.3″ x 3.78″
• Efficiency: MERV 13
• Efficiency Reference: Up to 90% on 1.0–3.0 micron particles
• Airflow Capacity: 1000 CFM
• Media: Synthetic mini-pleat media
• Frame: Plastic
• Initial Pressure Drop: 0.25″ w.g. (box), 0.29″ w.g. (header)
• Final Pressure Drop: 1.5″ w.g.
• Operating Temperature: Up to 176°F
• Sealant: Polyurethane
• Separator: Hot Melt
• Gasket: Optional
• Configuration: Box frame or single header
• Pack Quantity: 3 filters

Applications

• Commercial HVAC systems
• Industrial air handling systems
• Pharmaceutical and healthcare facilities
• Food processing and clean manufacturing areas
• Office buildings, schools, and institutional filtration systems

Features

• Mini-pleat design for high media area and efficient airflow
• Synthetic media for strong dust holding capacity and durability
• Plastic frame construction for lightweight handling and corrosion resistance
• Low initial resistance helps reduce energy consumption
• Available in box and single header styles for multiple system configurations

Quality & Compatibility

All DAMN Filters products are manufactured to meet or exceed industry performance standards and are designed as direct replacements for OEM specifications.

Call for availability. Sold in quantities of 3.

If you do not see the filter you are looking for, DAMN Filters offers a full line of mini pleat filters, rigid cell filters, HEPA filters, and other commercial and industrial replacement filters. Give us a call at (844) 605-3266 or contact us.
