Description
V-Bank 50/50 Blended Carbon Filter Details

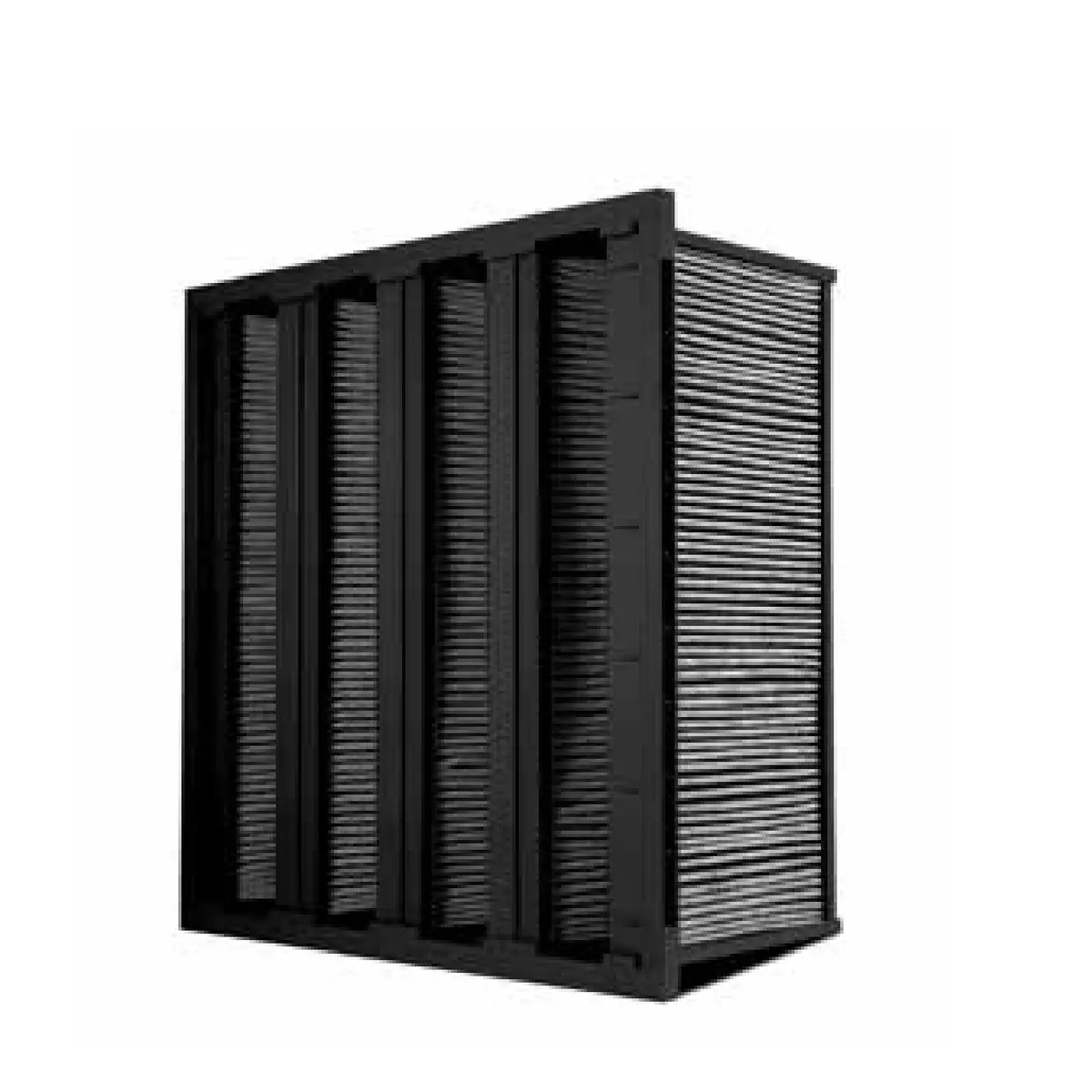

This CCRV blended V-bank chemical filter uses a 50/50 media blend of activated carbon and potassium permanganate (KMnO4) embedded between dual layers of synthetic media in a mini-pleat design. This construction provides effective gas-phase adsorption with a low pressure drop, all housed in a corrosion-resistant ABS plastic frame.
The 50/50 blend is designed to address a wider range of contaminants than carbon alone, helping reduce VOCs, vehicle exhaust, sulfur compounds, nitrogen oxides (NOx), ammonia, ozone, and other reactive gases, while also providing particulate filtration at a MERV 13 efficiency.
- Part Number: DF2424124VC13
- Filter Type: V-Bank 50/50 Blended Carbon Filter
- Nominal Size: 24 x 24 x 12 in (592 x 592 x 292 mm)
- Actual Size: 23.30 W x 23.30 H x 11.50 D (in)
- ASHRAE 52.2 Rating: MERV 13
- EN 779 Rating: F7
- Media: 50/50 blend of activated carbon and potassium permanganate embedded in dual-layer synthetic media
- Frame Material: ABS Plastic
- Header: 20 mm thick
- Filter Depth: 12 in
- Blend Media Weight: 5.0 kg
- Rated Airflow: 2,000 CFM (≈ 3,400 CMH)
- Initial Pressure Drop: 0.62 in. w.g.
- Final Pressure Drop: 1.5 in. w.g.
- Media Area: 66 sq. ft.
- Maximum Operating Humidity: 70%
- Maximum Operating Temperature: 55°C
- Pack Quantity: 1 filter per box
Cross Reference: 50/50 blended carbon and potassium permanganate V-bank chemical filters. Media type, blend ratio, and capacity should be verified prior to substitution.
Applications: Offices, manufacturing facilities, microelectronics, airports, hospitals, offices, shopping centers, hotels, restaurants, apartment complexes, industrial buildings, residential areas, and vehicle exhaust control.
Don’t see the filter you’re looking for? DAMN Filters offers a full line ofCarbon filters.
Need help or a custom size? Call us at (844) 605-3266 orcontact us here.
