High-performance H13-rated HEPA filter measuring 24 x 24 x 12 inches, engineered for 99.99% particle capture down to 0.3 microns. Features durable micro-glass filtration media and a rigid ABS plastic frame for lasting structural integrity and optimal airflow.

Description

HEPA Filter 5V Details

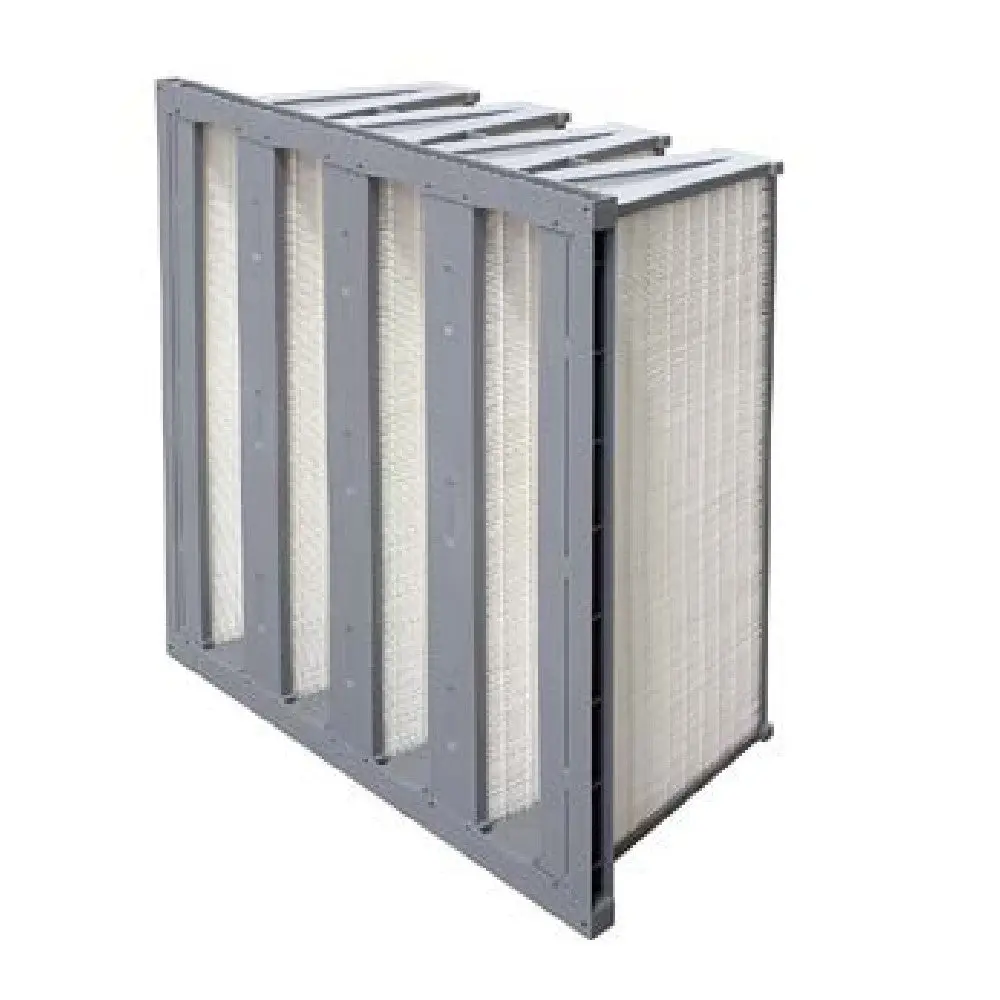

The HEPA HV filter is designed for high air volume capacity, using micro glass fiber paper media in a minipleat V-bank construction. It features a plastic frame, and is individually scan-tested per EN 1822 standards for leak-proof performance. The V-shaped mini-pleat design maximizes airflow, reduces pressure drop, and extends filter life, with mounting options for various air handling units.

HEPA Specs:

• HEPA 5V Filter
• Part Number: HX5H11APN1D3
• Size: 24 x 24 x 12 (610x610x292)
• Efficiency: 99.99% / H13
• Media: Micro Glass
• Frame: ABS Plastic (5V)
• Neoprene Gasket on downstream side
• Rated Airflow: 2000 CFM
• Initial Pressure Drop: 1.05” Wg
• Final Pressure Drop: 2” Wg
• Packing: 1 piece per box

Cross Reference: Air Filters Incorporated HEPA-5V-242412PFBG2-S/BOX, HEPA-5V-242412PFBG2-S/BOX, 5V-Cell Filter (SureCell), Clean Liquid Systems HEPA HPV, AccuraFil 11-25-14130030-31-8, Rensa Filtration RHV97242412, RHV99242412

DAMN Filters offers a full line of HEPA filters.

If you don’t see the HEPA filter you are looking for or need help give us a call at (844) 605-3266 or contact us.
