Description
ASHRAE Cell Filter Specifications

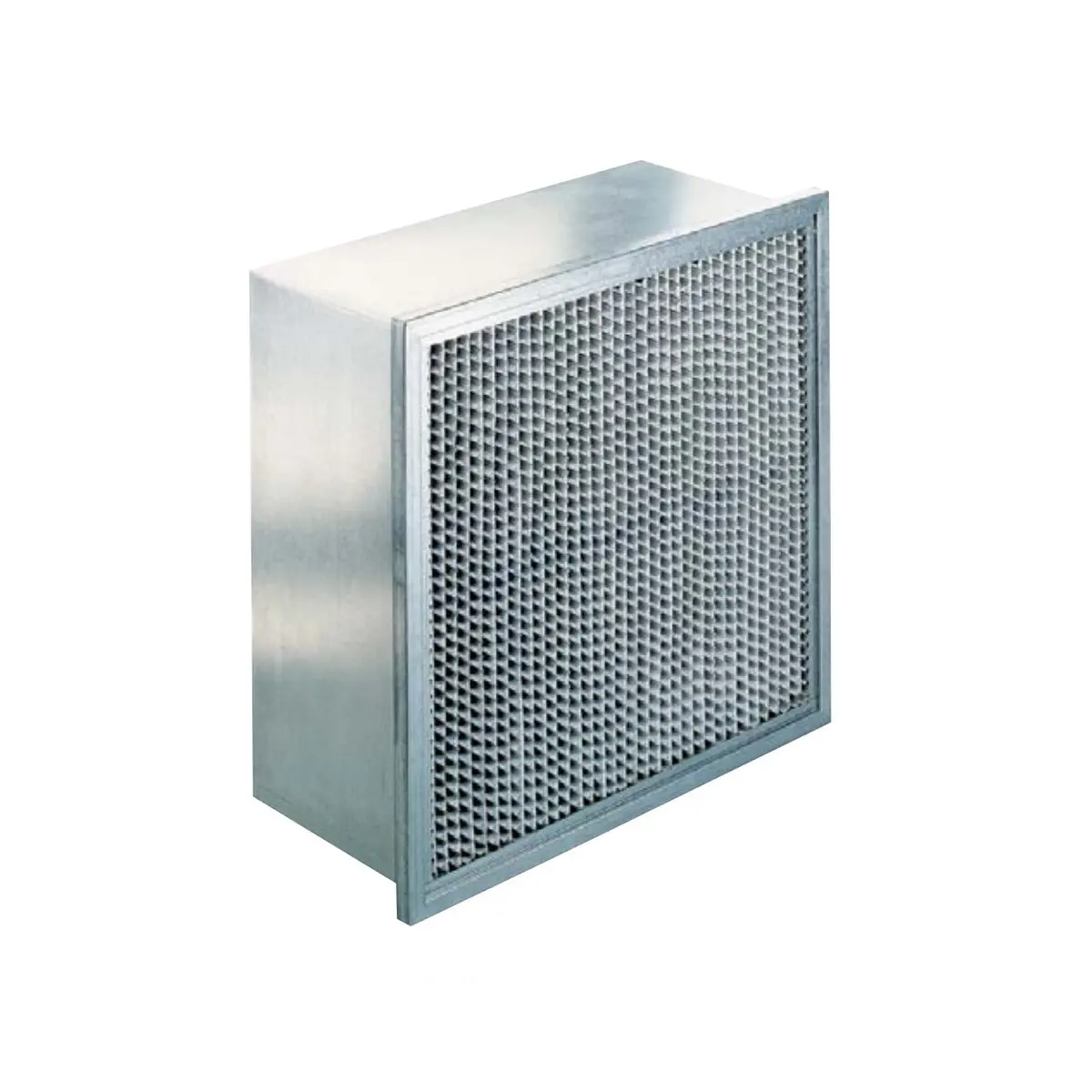

The ASHRAE Cell is a high-efficiency extended surface deep pleat filter with rigid construction, designed for demanding applications such as VAV systems, turbulent airflow, and high humidity environments. Its reinforced frame and separator design help prevent dust unloading and maintain stable performance throughout the filter’s service life.
This deep pleat ASHRAE cell design is commonly used as a direct replacement for traditional pocket or bag filters where durability, space efficiency, and longer service life are required.
- OEM Make: DAMN Filters
- Part Number: DF122412ASH
- Filter Category: High-efficiency ASHRAE deep pleat cell filter
- ASHRAE 52.2 Rating: MERV 14
- Nominal Size: 12 x 24 x 12 in
- Actual Dimensions (in): 11.38 W x 23.38 H x 11.50 D
- Nominal Depth: 12 in
- Filter Media: Micro fine glass fiber
- Media Separators: Hemmed-edge aluminum corrugated separators
- Frame: Galvanized steel (single header shown; box and double header available)
- Typical Operating Airflow: up to 1,000 CFM (application dependent)
- Typical Initial Resistance: ~0.60 in. w.g. at rated airflow
- Recommended Final Resistance: 1.40 in. w.g.
- Maximum Operating Temperature: 80°C / 176°F
- Gasket: Optional seamless PU gasket
- Recommended Use: Final filter in commercial HVAC systems or prefilter to HEPA
Applications
- Hospitals and healthcare facilities
- High-tech and electronics manufacturing
- Semiconductor fabrication
- Biomedical and pharmaceutical facilities
- Laboratories and research environments
- Food processing
- Universities and institutional buildings
- Biotechnology and genetic research
Available configurations include single header, double header, or box-style frame construction with optional seamless gasket sealing based on housing requirements.
OEM Cross Reference (for reference only):
- Filtration Manufacturing: 0902-122412-8-NH, 0902-122412-8-SH, 0902-122412-8-DH
- Variflow: SC 2900631
- Cary Company: 21BF77
- Grainger / Air Handler: 5W920
- Zoro: G0298285
- Koch Filter: FM 110-730-000
If you don’t see the filter you are looking for or need assistance confirming fit, give us a call at(844) 605-3266 or contact us.
