Description

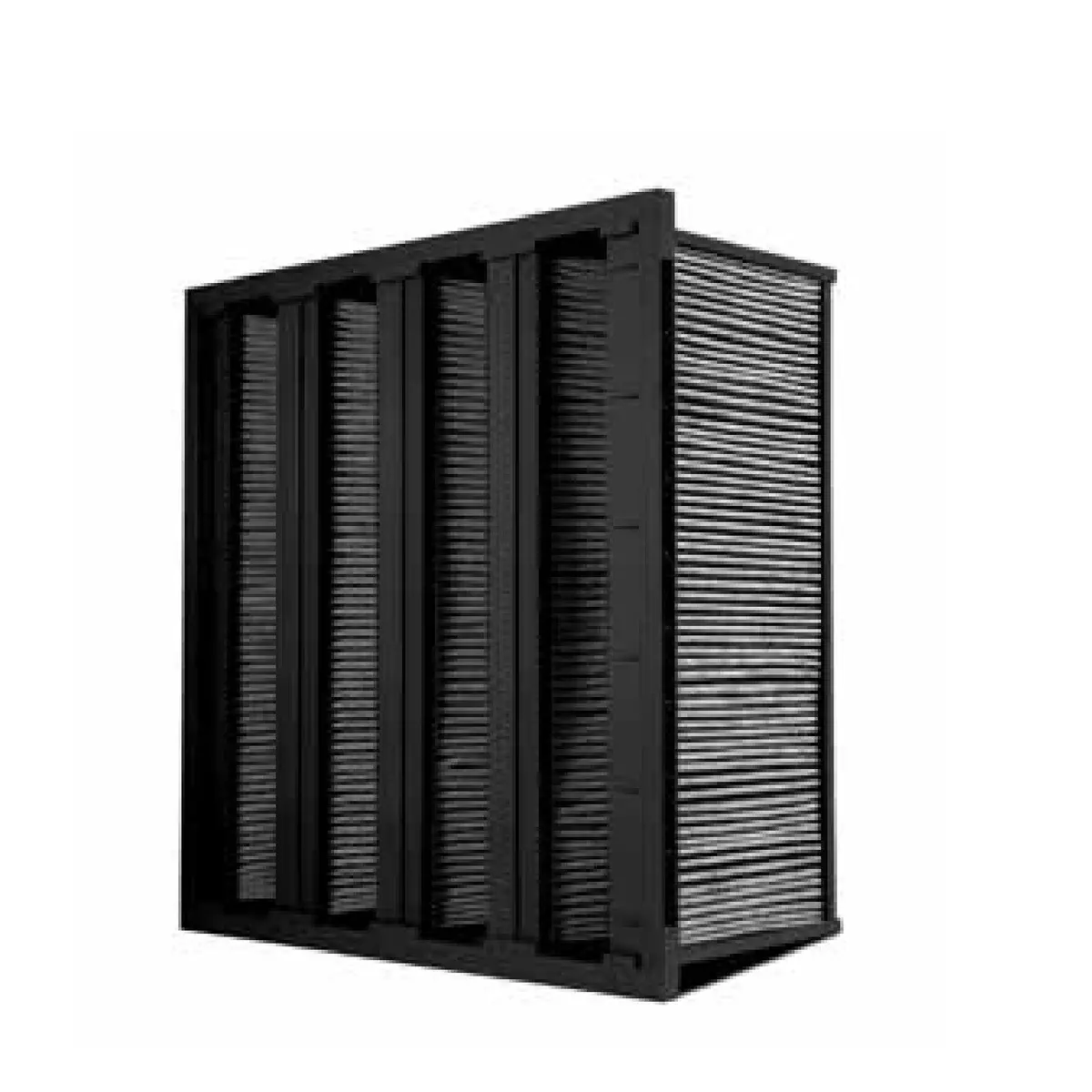

V-Bank Carbon Filter Details
This V-bank carbon filter uses micro-granulate activated carbon embedded in a dual-layer synthetic mini-pleat media to deliver high adsorption efficiency with a low pressure drop. The corrosion-resistant ABS plastic frame provides durability while supporting both particulate filtration and molecular gas-phase contaminant removal.
Designed to reduce VOCs, vehicle exhaust, sulfur compounds, nitrogen oxides (NOx), ammonia, and ozone, this filter is available in multiple sizes and MERV 10, 13, and 15 efficiencies for a compact, long-life filtration solution.
- Part Number: DF2424124VC15
- Filter Type: V-Bank Carbon Filter
- Nominal Size: 24 x 24 x 12 in
- Actual Size: 23.30 W x 23.30 H x 11.50 D (in)
- ASHRAE 52.2 Rating: MERV 15
- EN 779 Rating: F9
- Media: Micro-granulate activated carbon embedded in dual-layer synthetic media
- Frame Material: ABS Plastic
- Header: 20 mm thick
- Filter Depth: 12 in
- Carbon Weight: 4.8 kg
- Rated Airflow: 2,000 CFM (≈ 3,400 CMH)
- Initial Pressure Drop: 0.65 in. w.g.
- Final Pressure Drop: 1.5 in. w.g.
- Media Area: 66 sq. ft.
- Maximum Operating Humidity: 70%
- Maximum Operating Temperature: 55°C
- Pack Quantity: 1 filter per box
- Meets UL Standards
Cross Reference: AAF VariCel RF/C 185-101-863, AccuraFil, Grainger 2GHA9, 2GGV7, 2GGX8, 19RR57, Omni CleanAir OCVBANK2424, Mikropor MV-F9SMAC-03, Zoro G4635985, G6639141
Applications: Commercial buildings, manufacturing facilities, microelectronics, airports, hospitals, offices, shopping centers, hotels, restaurants, apartment complexes, industrial buildings, residential areas, and vehicle exhaust control.
Don’t see the filter you’re looking for? DAMN Filters offers a full line of Carbon filters.
Need help or a custom size? Call us at (844) 605-3266 or contact us here.
