Coral FM10 Modular Dust Collector – Ready-to-Install Filtration Unit

Description

Coral FM10 READY Information

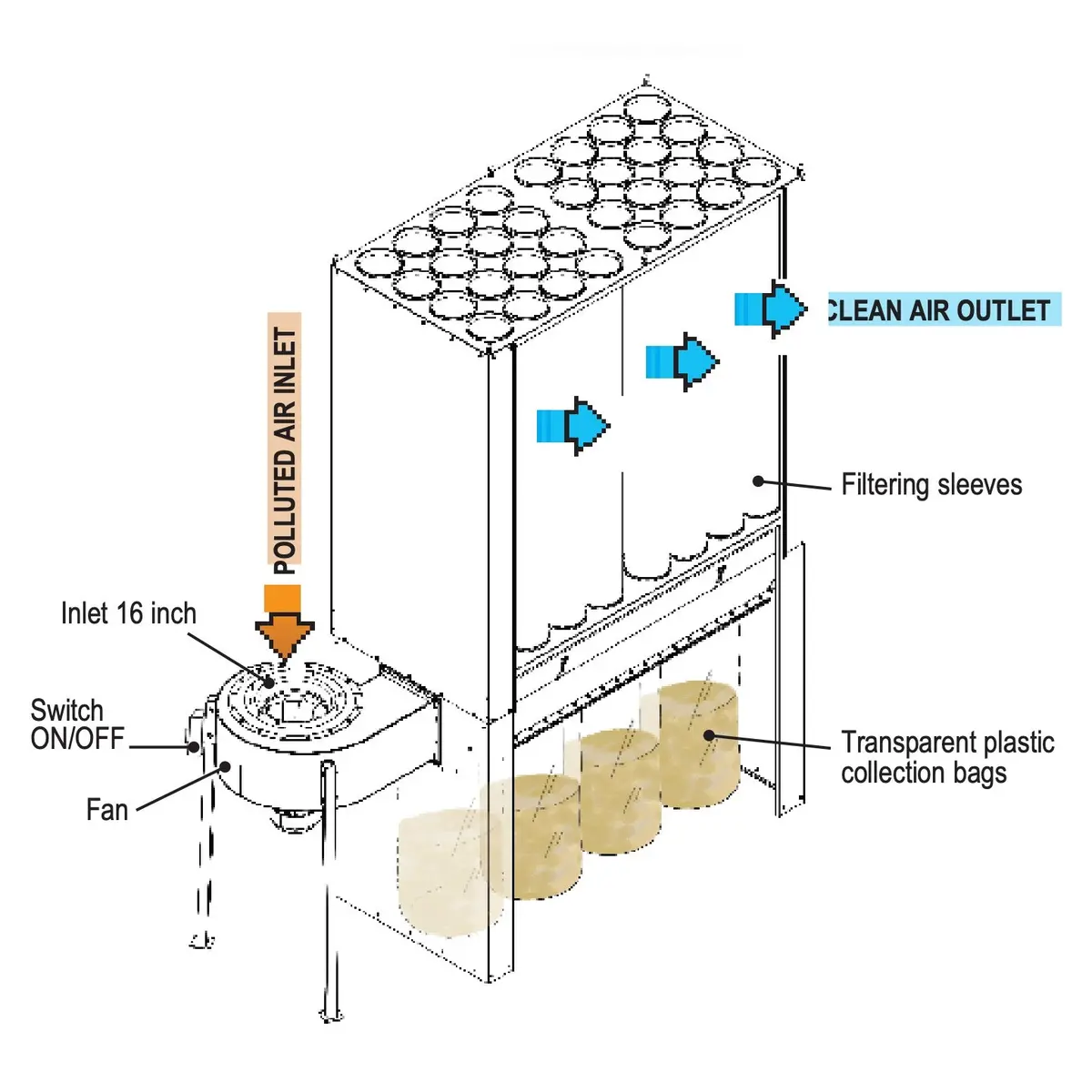

The Coral FM10 READY modular filter unit is designed for wood dust applications.

• Power: 10 HP/7,5 KW
• Supply Voltage: 230 or 460 Volts 3ph
• Fan Rotation Speed: 1750 RPM
• Average Noise Level: 79 dBA
• Air Capacity: 5,000 CFM
• Pression: 6 inches WG
• Weight: 793 lbs
• No. Of Sleeves: 32
• Filtering Surface: 510 sq. ft
• No. Of Collecting Bags: 4
• Waste Dust Collection Bags Capacity: 34 cubic ft
• Wood Dust Extraction
• Fast & Easy Installation
• Space Saving
• Low Noise Level

The Coral FM10 READY dust collector is delivered pre-assembled and ready for operation with minimal set up.

DAMN Filters offers a full line of dust collectors.

If you don’t see the dust collector you are looking for or need help give us a call at (844) 605-3266 or contact us.
