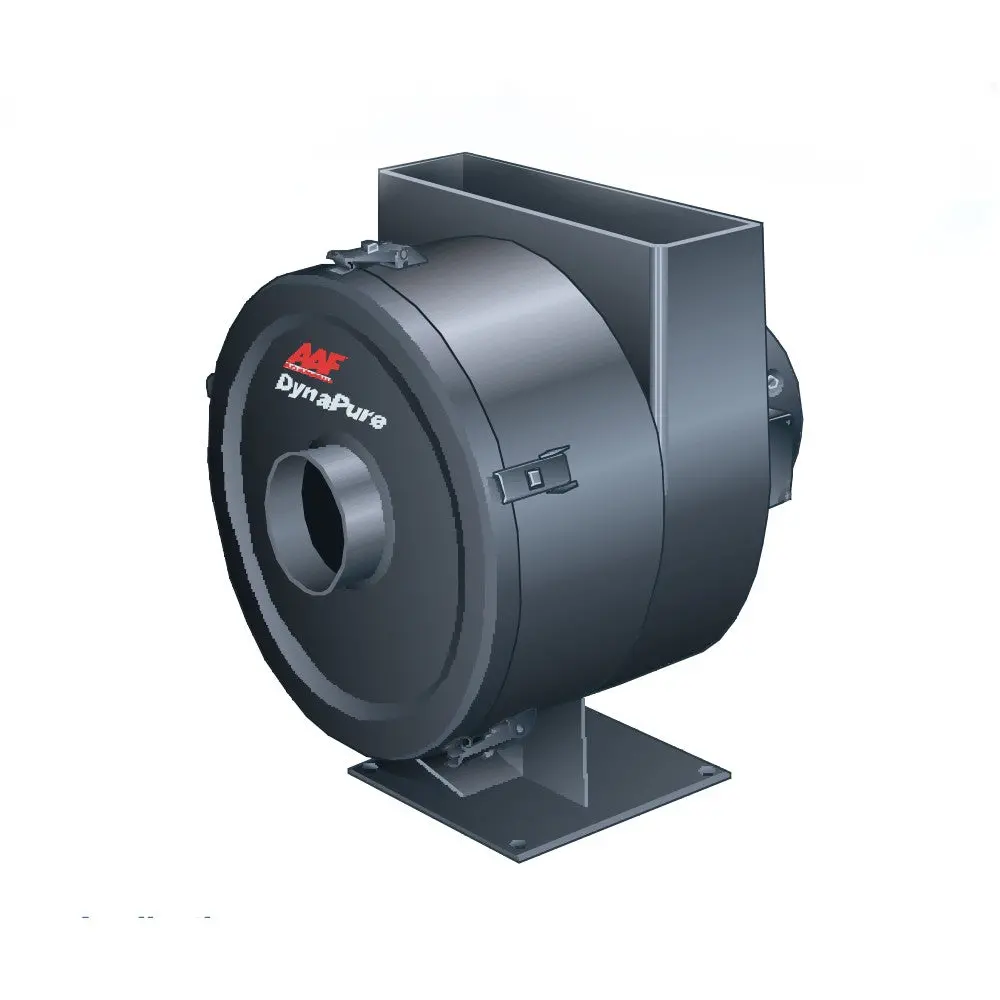

Dynapure Industrial Mist Collector for CNC and Metalworking

Description

DynaPure AAF mist collector Specs:

• AAF DynaPure Details:
• CFM (Air Volume) 25 – 1000

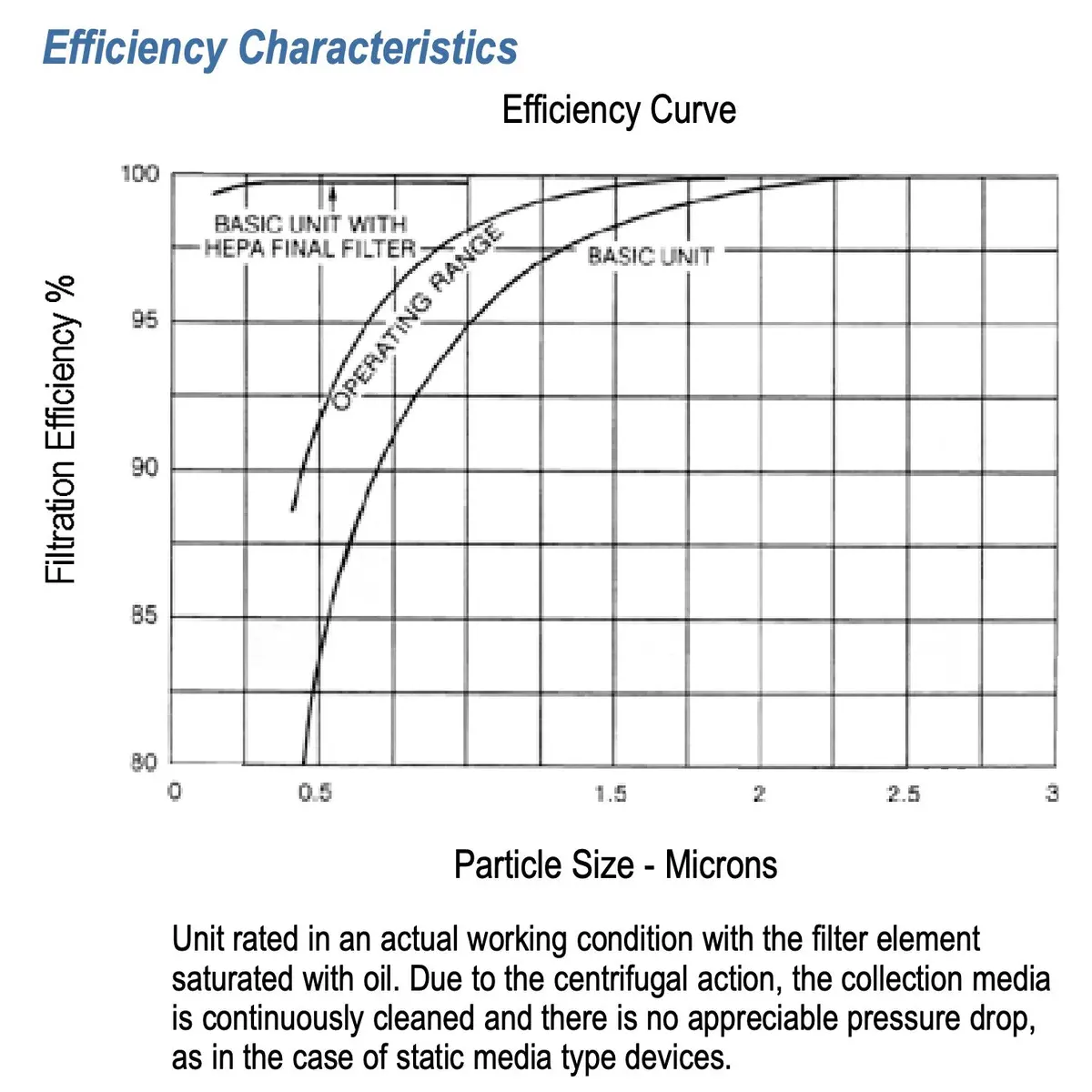

• Efficiency % 99.99
• Grain Loading / CF 0 – 1
• Hours of Operation 24/7
• Material Characteristics Oil Mist
• Max Temperature 120° F/49° C

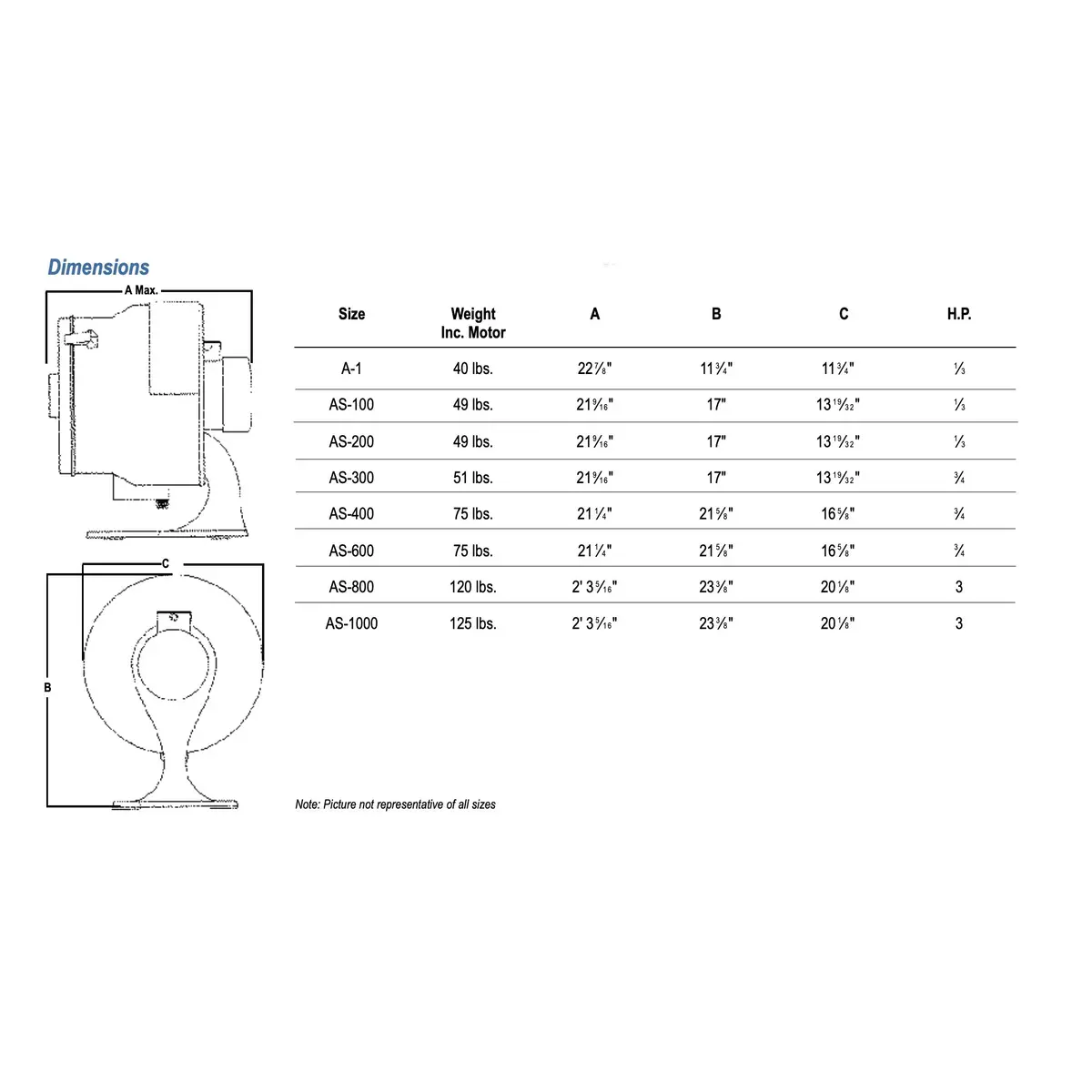

DynaPure AAF mist collector models:

• DynaPure Model AS-100 100 CFM Model
• 4″ Inlet Collar is provided for connection to ducting
• 115V/230V/1Ph/60Hz TEFC Motor
• DynaPure Model AS-200 200 CFM Model
• 4″ Inlet Collar is provided for connection to ducting
• 115V/230V/1Ph/60Hz TEFC Motor
• DynaPure Model AS-400 400 CFM Model
• 4″ Inlet Collar is provided for connection to ducting
• 230V/460V/3Ph/60Hz TEFC Motor
• DynaPure Model AS-600 600 CFM Model
• 4″ Inlet Collar is provided for connection to ducting
• 230V/460V/3Ph/60Hz TEFC Motor
• DynaPure Model AS-800 800 CFM Model
• 6″ Inlet Collar is provided for connection to ducting
• 230V/460V/3Ph/60Hz TEFC Motor
• DynaPure Model AS-1000 1000 CFM Model
• 6″ Inlet Collar is provided for connection to ducting
• 230V/460V/3Ph/60Hz TEFC Motor

Not sure if this is the right mist collector? Let us know the following information to confirm you are getting quoted the right item –

• Machine Make/Model
• What type of coolant
• What is the material being cut
• Manufacture’s recommended CFM
• Internal Cavity dimensions of the machine
• Inlet port size for each machine (if applicable)

All equipment purchases require 50% down payment.

DAMN Filters offers a full line of mist collectors.

If you don’t see the mist collector you are looking for or need help give us a call at (844) 605-3266 or contact us.
