Jetclean DF Extraction and Collection System

Description

Coral JETCLEAN DF Extractor/Collector

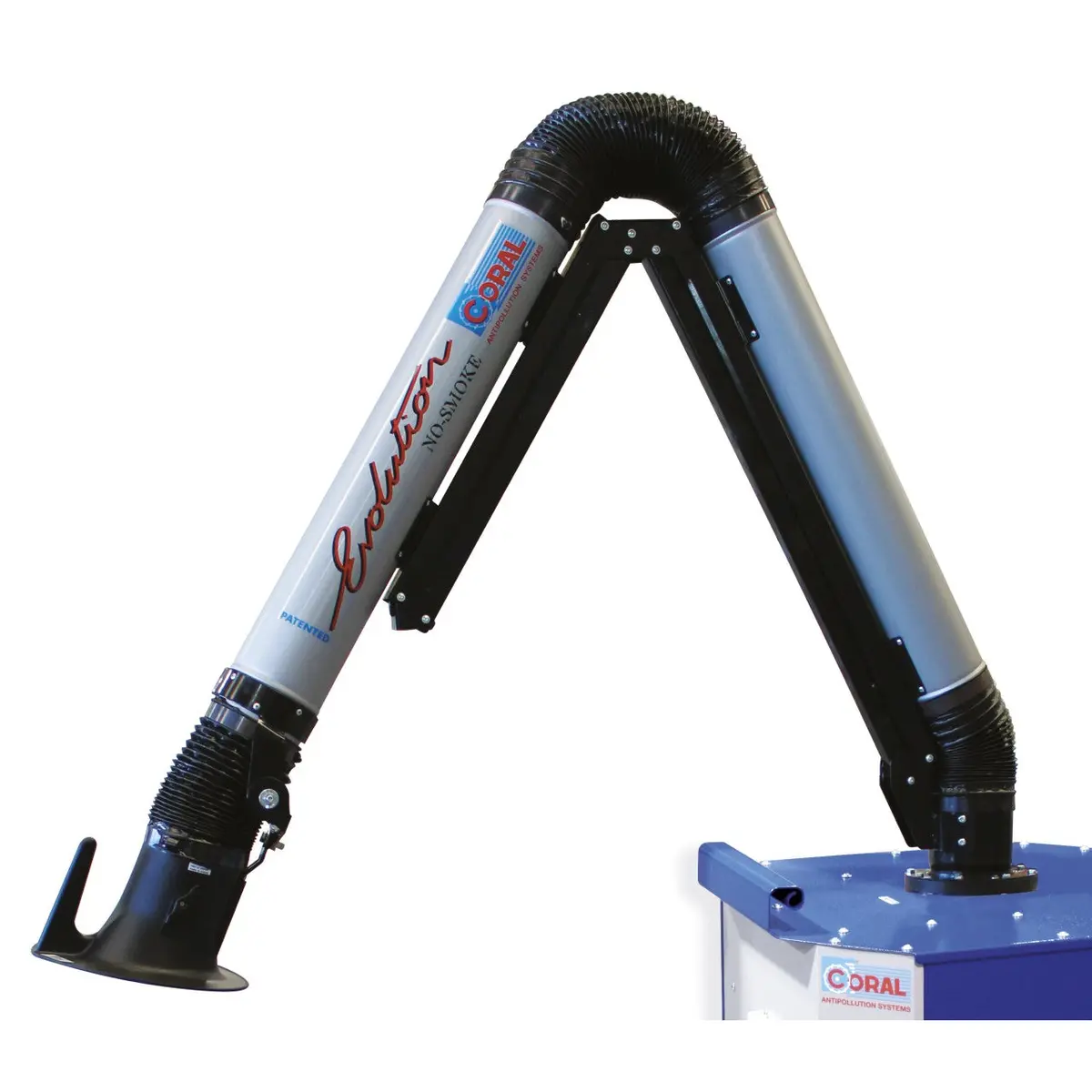

Discover the Coral Portable JETCLEAN DF, equipped with our innovative EVOLUTION arm, tailored to meet OSHA compliance standards for efficient welding fume and dust extraction. With the EVOLUTION arm’s 360° rotation capability, placement becomes effortless. The JETCLEAN DF employs compressed air for cartridge cleaning, ensuring longevity. Crafted from robust galvanized steel with a durable powder coat finish, it’s built to last. Plus, our motors hold UL and CSA certifications for your peace of mind.

JETCLEAN DF extractor/collector Specs:

• Motor: 1 and 1 1/2 HP Single Phase Motor
• Voltage: 110V
• Frequency: 60 hz
• RPM: 3600
• Flow rate with arm: 1109 cfm
• Number of filters: 2
• Filter type: Cartridge with compressed air cleaning
• Filter media: 100% Polyester
• Extraction arm: 6″ x 10′
• Decibal level: 74 db
• Storage Capacity – Front Drum: 3.1 gal
• Storage Capacity – Back Drum: 7.4 gal
• Weight: 341 lbs

3 phase option:

• Motor: 3 HP Single Phase Motor
• Voltage: 230/460 V 3Ph
• Frequency: 60 hz
• RPM: 3600
• Number of filters: 2
• Filter type: Cartridge with compressed air cleaning
• Filter media: 100% Polyester
• Decibal level: 74 db
• Storage Capacity – Front Drum: 3.1 gal
• Storage Capacity – Back Drum: 7.4 gal

JETCLEAN DF extractor/collector Optional Items:

• Plastic hood with light kit
• Inlet connection for 8″ arm
• Soundproof Plenum
• Plenum with HEPA H13 Absolute Filter
• Plenum with Activated Carbon Filter
• Plenum with Activated Carbon Filter and HEPA H13 Filter

Uses 7041061078 Cartridge IFA/BGIA M-PES Coral OEM Filter
