Scout II Portable Dust Collector

Description

Portable Dust Collector with Extraction Arm

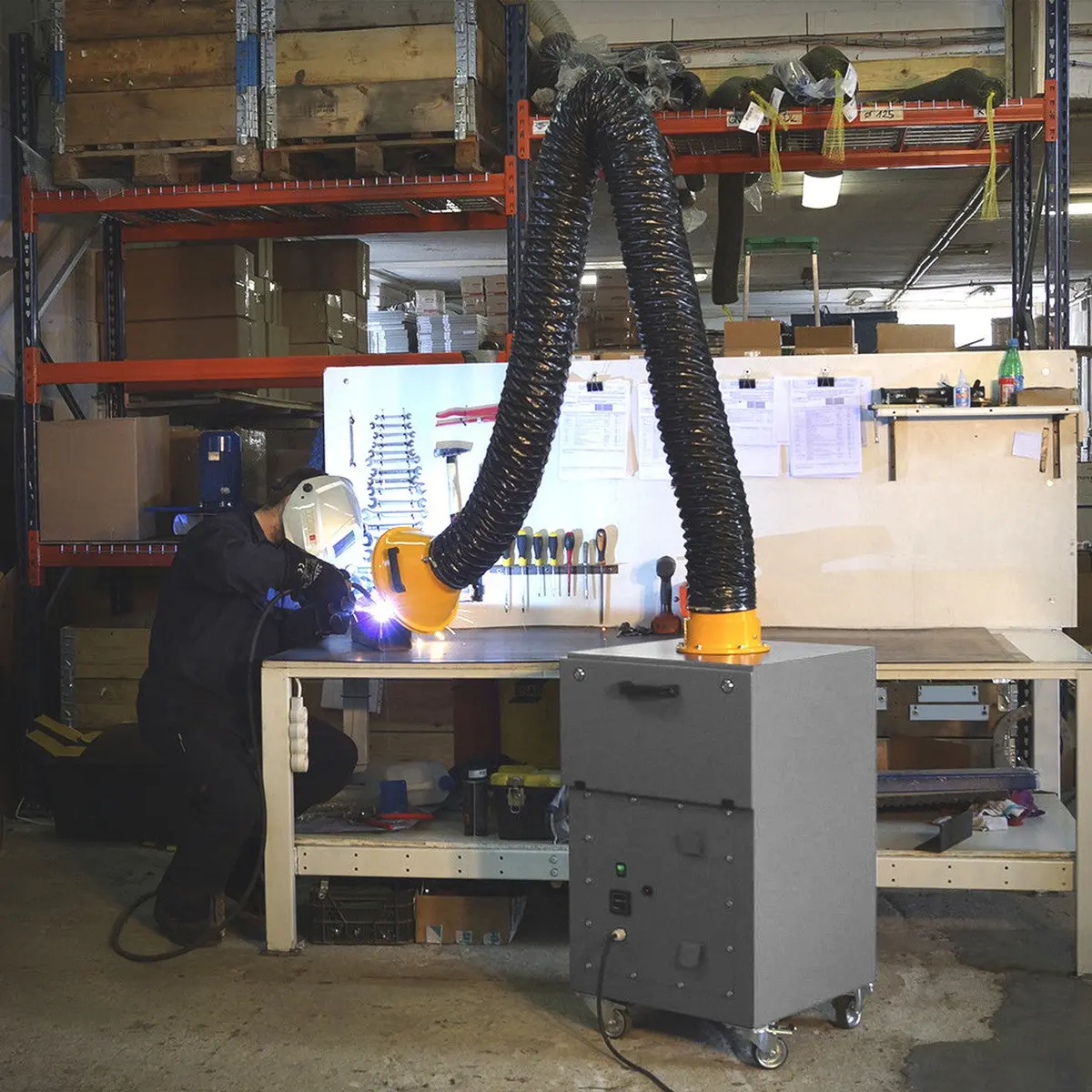

This plug-and-play portable dust extractor features compact dimensions, heavy-duty welded solid steel construction, and a durable powder-coated finish. It offers high maneuverability with swivel casters, easy access to filters, and a built-in filter indicator for performance monitoring. Ideal for capturing dry dust, soldering dust, welding fumes, grinding dust, and powders in various industrial applications.

Scout II Specifications

• Motor: 1 HP single-phase motor with thermal overload (multiple voltages available)
• Voltage: 120V
• Dimensions: 22″ W × 23″ L × 37″ D

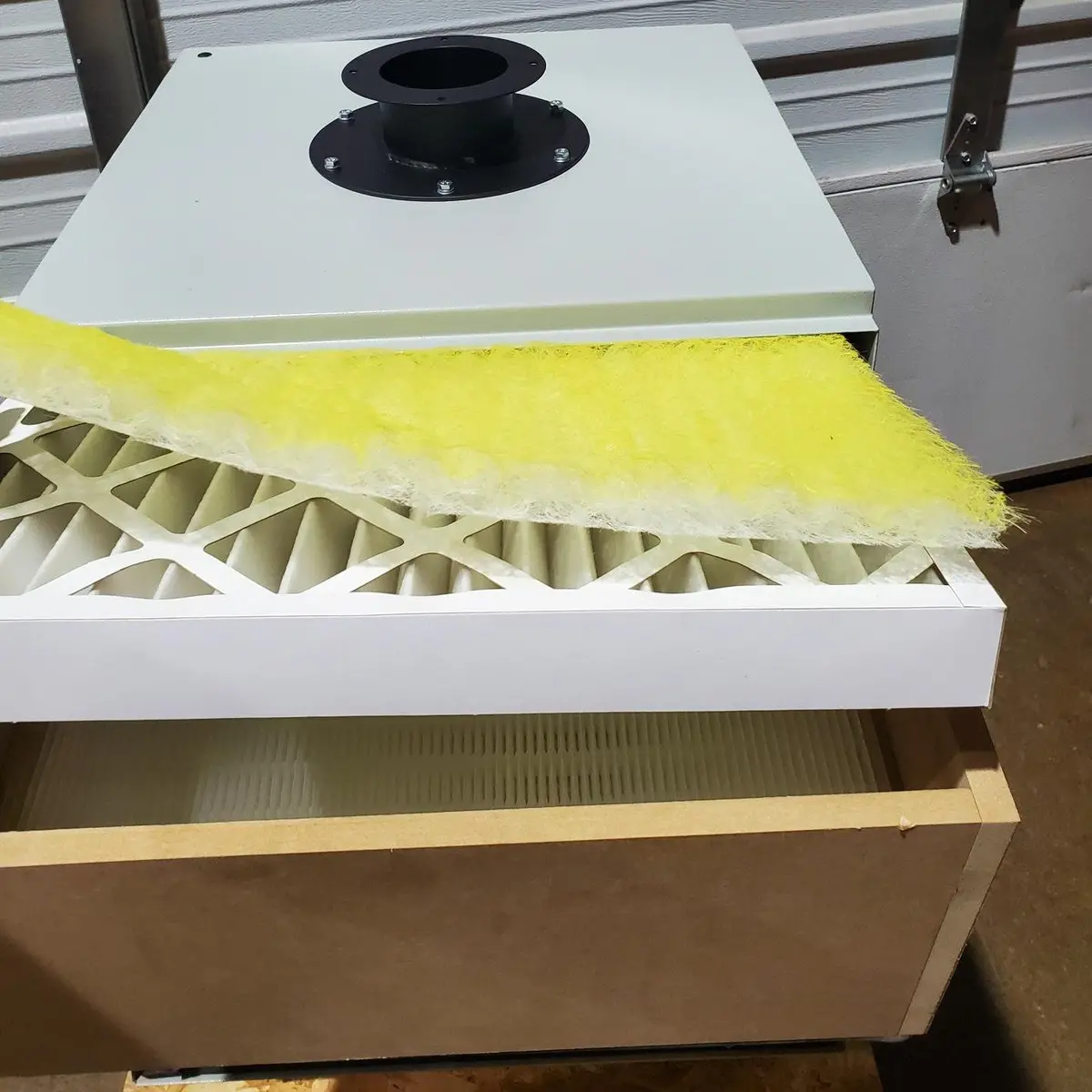

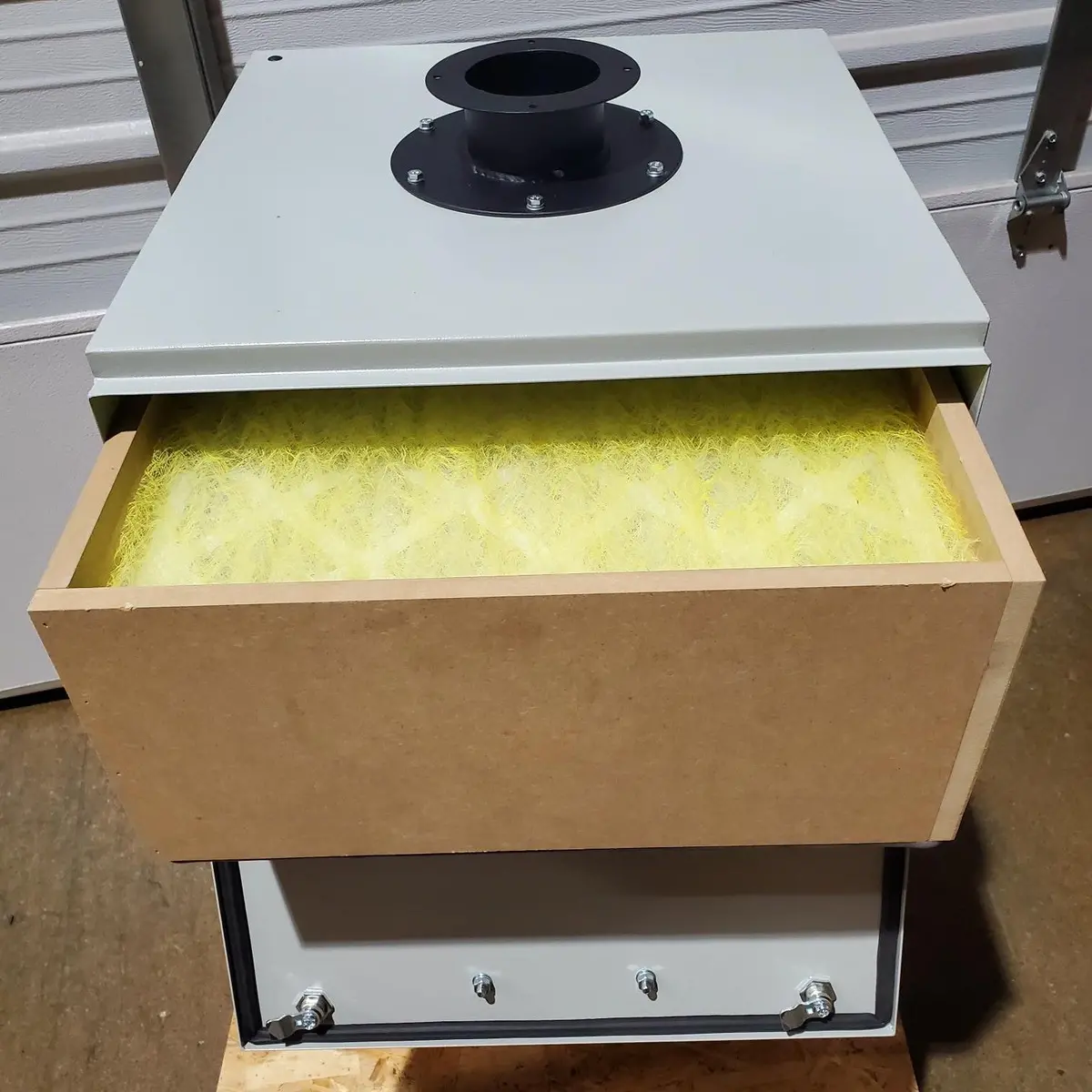

• Filtration: 3-stage – Stage 1: Fiberglass filter, Stage 2: Pleated pre-filter, Stage 3: Rigid cell filter
• Maximum Airflow: 560 CFM
• Noise Level: 72 dBA

Portable configurations

• Option 1: (1) 4″ Diameter x 5′, 7′ or 8′ Long
• Option 2: (1) 5″ Diameter x 7′ Long
• Option 3: (1) 6″ Diameter x 7′ Long
• Option 4: No arm, flange top, 4″, 5″, or 6″

Routine maintenance includes checking the motor, electrical system, and insulation for wear or damage. Inspect for corrosion and ensure all controls and components are secure and working properly.

All equipment purchases require 50% down payment.

DAMN SCOUT II Owner’s Manual

DAMN Filters offers a full line of portable dust collectors.

If you don’t see the portable collector you are looking for or need help give us a call at (844) 605-3266 or contact us.
